Rock Krawler JKU 3.5 Inch Adventure Series 1 Long Arm Lift Kit 07-18 Wrangler 4 Dr JK35AS1LA-4
Rock Krawler JKU 3.5 Inch Adventure Series 1 Long Arm Lift Kit 07-18 Wrangler 4 Dr
System Benefits:
- Excellent Highway Ride and Handling
- Unbelievable Off-Road Ability
- No Axle Welding
- Conventional Suspension Geometry
- Triple Rate Coil Springs
- PRO Front Sway Bar Disconnects/Extended Links
- PRO Rear Extended Sway Bar Links
- 33 Inch or 35 Inch Tires (OEM Fenders)
- 37 Inch Tires (Flat Fenders)
- Abuse Proof Lifetime Warranty on All Hard Parts
- Upgradeable to any other Rock Krawler System

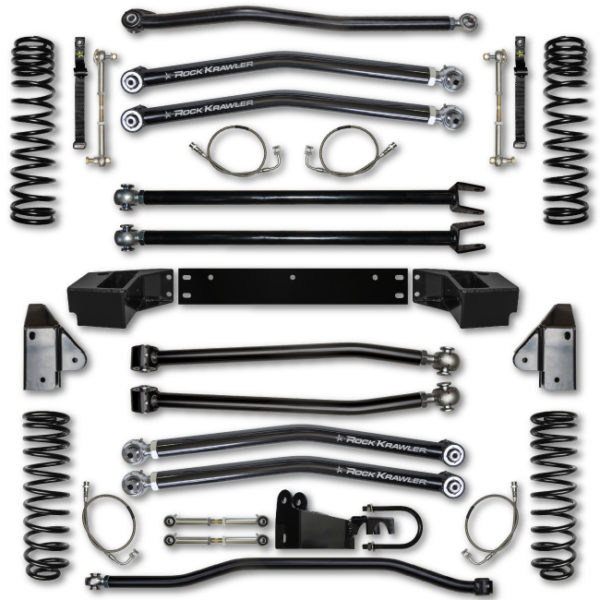

System Includes:
(4) Triple rate coil springs
(2) High clearance adjustable front lower control arms
(2) Adjustable front upper control arms
(1) Adjustable Anti-Wobble front track bar
(2) Adjustable front sway bar disconnects
(2) Sway bar straps
(2) Front frame side long arm mounts
(1) 1/4 Inch thick laser cut steel cross member
(2) Rear frame side long arm mounts
(1) Adjustable Anti-Wobble rear track bar
(1) Bolt on rear track bar relocation bracket
(2) High clearance adjustable front lower control arms
(2) Adjustable rear upper control arms
(2) Rear extended sway bar links
(4) Long travel stainless steel brake lines
Hardware and detailed instructions
Notes:
- Requires welding of the Front and Rear Long Arm Mounts.
- Requires removal of the OEM frame side lower control arm mounts front and rear.
- Requires removal of the OEM frame side front upper control arm mounts.
- Requires trimming of the rear body mount.
- Minor exhaust rerouting required before the collector on the driver’s side. This is recommended to be done prior to the suspension system being installed.
- Recommend installing limiting straps to avoid over extension of suspension components after vehicle is all set up.
- We typically recommend 4.5 Inch of backspacing on rims for 33 Inch and 35 Inch tall tires.
- We typically recommend 3.5 Inch of backspacing on rims for 37 Inch tall tires.
$3,504.12 $3,688.55
